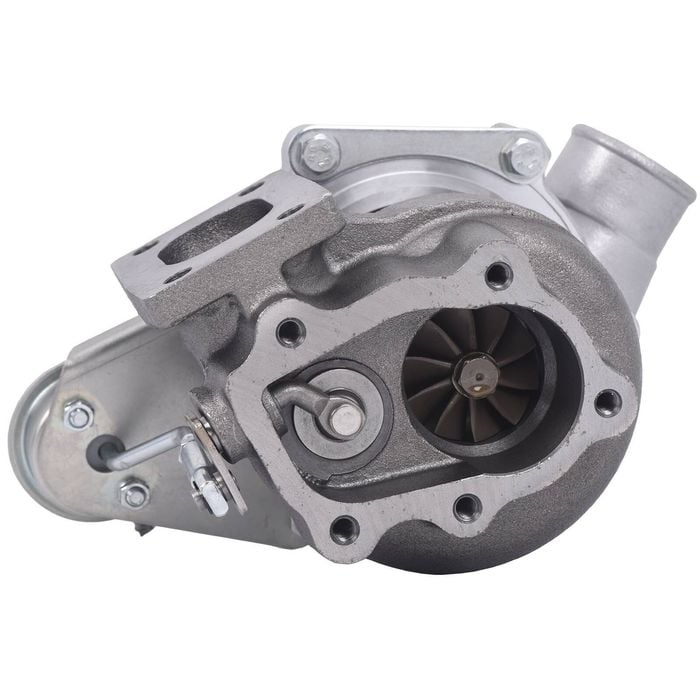

Gt25 Gt28 Gt2871 Gt2860 Upgrade T25 T28 Water Cooled .64 Universal Billet Turbo

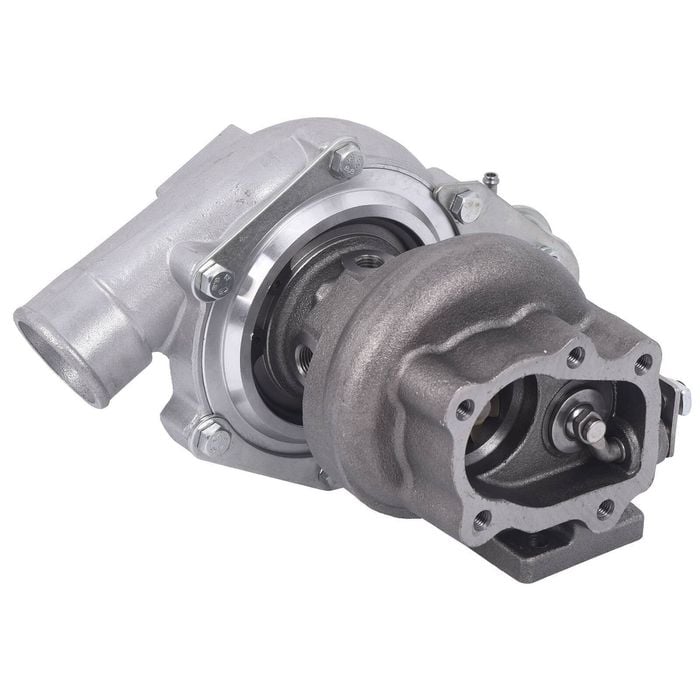

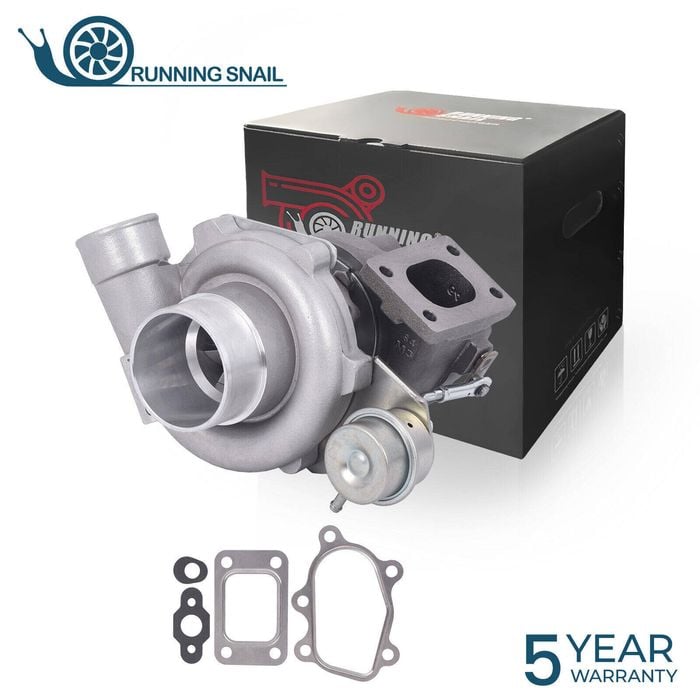

Application universal fit for turbo manifolds with t25 flange t28 flange can be converted to t25 with adapter (not included) ideal for 1.5l–2.0l 4-cylinder engines turbo model gt25 / gt28 (upgrade type: gt2860 / gt2871) specifications exhaust side exhaust inlet flange: standard t25 exhaust outlet flange: 5-bolt turbine trim: 76.3 turbine a/r: 0.64 turbine inducer diameter: 53.8 mm turbine exducer diameter: 47 mm compressor side compressor trim: 48 compressor a/r: 0.60 compressor inducer diameter: 49.2 mm compressor exducer diameter: 71 mm oil & cooling cooling type: water & oil cooled bearing type: wet float thrust bearing: 270° wastegate: internal oil restrictor: yes (2 mm id) oil feed size: 12 mm oil inlet: m12×1.25 oil outlet: m14 & 2×m8×1.25 oil drain thread pitch: 40 mm water thread size: m14×1.5 performance supports up to 350 bhp turbo type: individual upgrade unit gaskets comes with a free gasket set, as shown in the photo. fitment notice please confirm compatibility with your setup before purchasing.
