A completed outdoor day bed against a backyard fence with six throw cushions and a fruit tray nearby

Overview

There's no better place to get away from it all than your backyard. This outdoor daybed will help you to relax and unwind while you're outside. It also makes a great design feature. With just a few tools and materials, you can build one yourself and then use it to put your feet up when you're done.

Steps

1Have your timber pre-cut

To make building your outdoor daybed even easier, work out the length and width you want it to be and have the timber pre-cut at your local Bunnings. Here's the cut list we used.

For the vertical timber

  • 125mm x 75mm x 625mm cypress post x 10

For the horizontal timber

  • 125mm x 75mm x 750mm cypress posts x 6

Merbau posts

  • 90mm x 90mm x 2.4m x 4

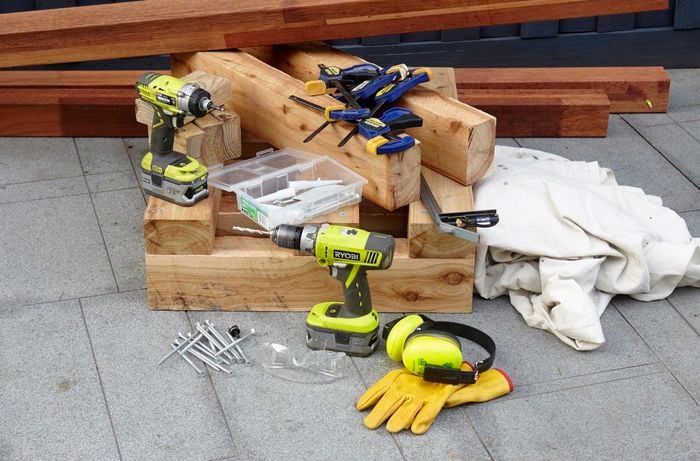

Several lengths of wood, power drills, bolts, clamps, a square rule, gloves and earmuffs

2Build 1 end of your daybed

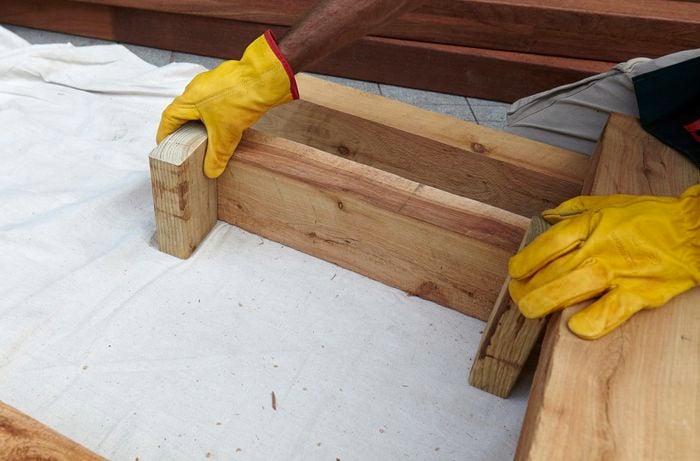

Lay out the timber first to make it easier to understand how the end of your daybed will fit together. Also, work on the ground to make the assembly process easier. Start with 2 vertical cypress posts (125mm x 75mm x 625mm) and lay 2 horizontal cypress posts (125mm x 75mm x 750mm) onto them in a square shape, making sure they line up evenly.

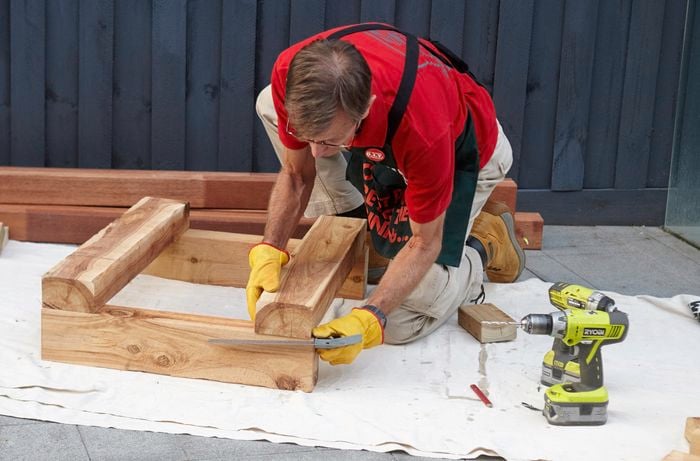

Framework for one end of a wooden outdoor day bed being measured for squareness with a square rule

3Measure, mark and drill the first horizontal piece

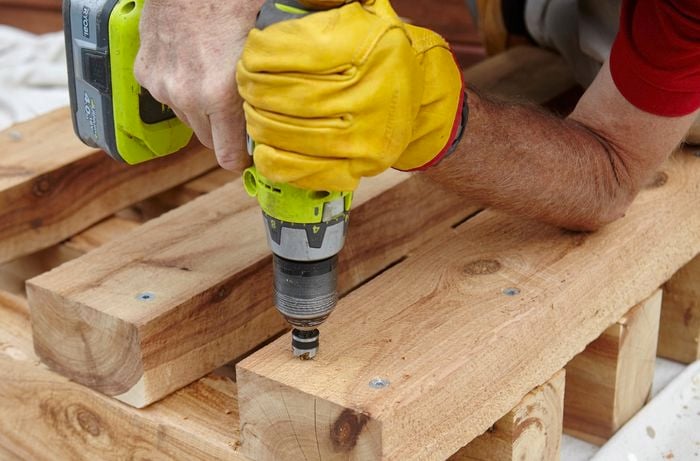

Measure and mark the ends of the first piece of horizontal timber so that you can secure it to the vertical pieces. Use a cordless drill to make the holes and countersink these so that the screws are hidden.

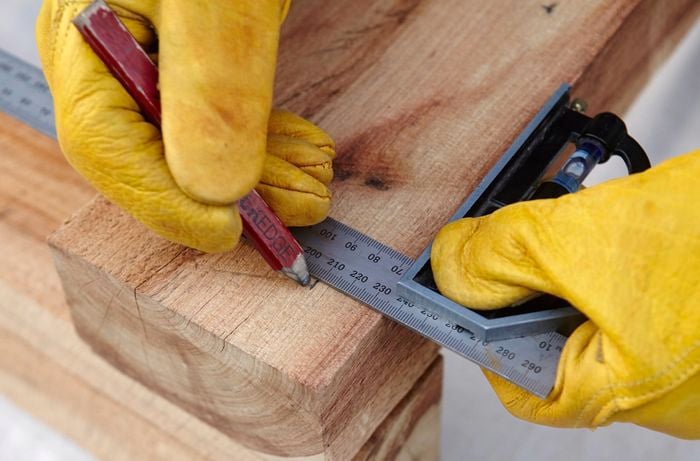

A square rule and pencil being used to mark a piece of timber for drilling

4Drill the first horizontal piece

Drill 1 end of the first horizontal piece into place over the 2 vertical pieces. Then repeat this process for the other end until it's firmly in place.

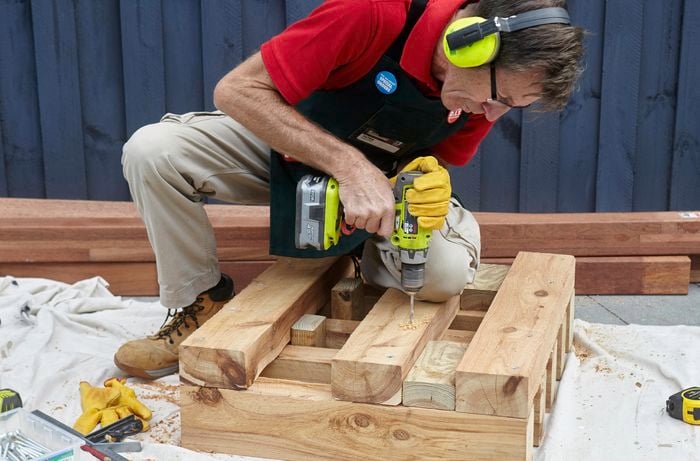

Framework for one end of a wooden outdoor day bed being screwed together

5Insert the other vertical timber pieces

Lay the other 3 lengths of 625mm vertical timber beneath the fixed horizontal piece, between the other 2. These will be the vertical posts at the end of your daybed. Use the 90mm spacers to ensure these verticals are evenly spaced apart.

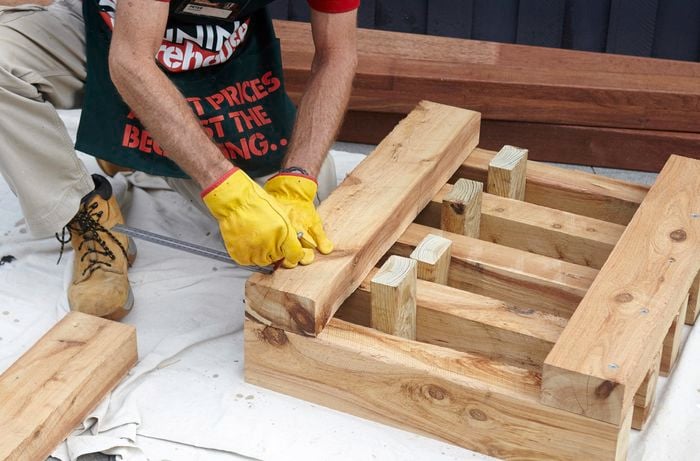

Framework for an outdoor day bed being measured for bolts with a square rule

6Secure the horizontal timber

With the spacers in place, make sure the first piece of horizontal timber is flush with the end of the vertical timber. Pre-drill holes into the 750mm horizontal piece over the ends of the 625mm verticals and then screw together to secure.

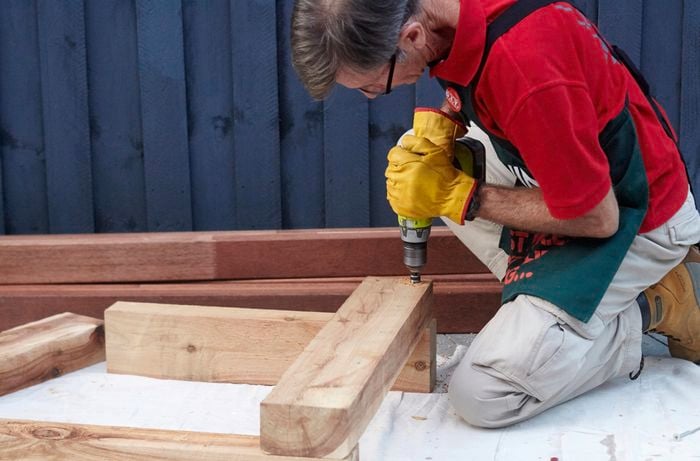

Framework for one end of a wooden outdoor day bed being screwed together

7Secure the second horizontal timber

Using the 90mm spacers, position the second 750mm horizontal at the other end of the verticals, making sure its flush with each end. Mark and drill pilot holes into the horizontal piece over each vertical and counter sink them. Then use your drill to screw that horizontal securely in place.

Framework for an outdoor day bed being measured for bolts with a square rule

8Secure the centre horizontal timber

The central horizontal timber is the load bearer for the daybed. Use the spacer to make sure it's the same height (90mm) as the slats of wood you will use to sit on. Pre-drill the holes and countersink them. Then use the drill and screws to attach your timber securely to each piece of vertical timber.

Framework for one end of a wooden outdoor day bed being screwed together

9Make the end square

Use a square to make sure that the end is square. If it's not, use a hammer to tap it into place. Pre-drill a hole. Countersink it and then use the drill to secure a second screw into each of the three pieces of horizontal timber.

Framework for one end of a wooden outdoor day bed being screwed together

10Build the second end

To build the second end, just follow steps 2–9. Make sure you use the spacers so that it's identical to the first end that you've built. Use sandpaper to smooth both ends of the daybed.

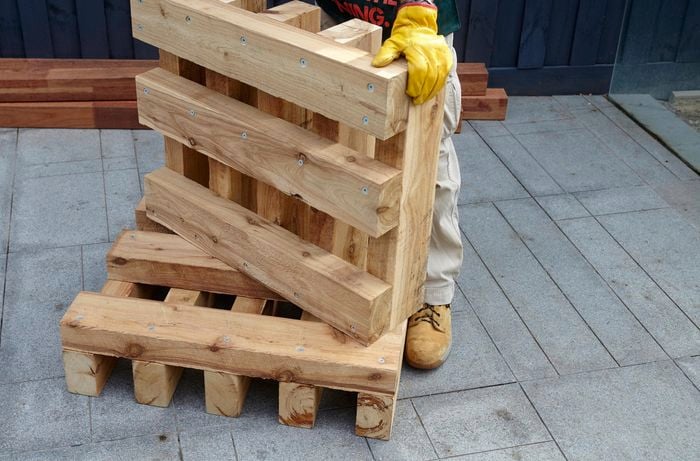

Two completed ends of a wooden outdoor day bed being held up by a Bunnings team member

11Put the daybed together

You'll need someone to help you with this step. Stand 1 of the ends up and slide the Merbau posts into the 90mm gap (between the top and second horizontal). Have someone stand the other end up and insert the opposite ends of the posts into that as well, until the daybed is complete. Make sure all the Merbau ends are flush with the stand ends.

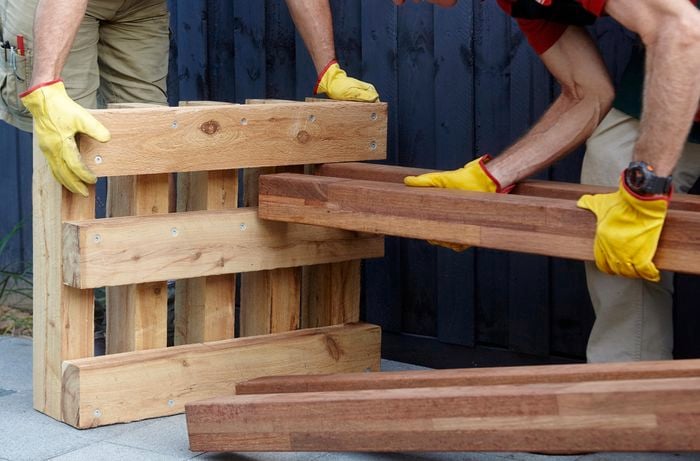

Timber lengths being inserted into one end of a wooden outdoor day bed

12Finish the daybed

You can paint or stain your daybed depending on the look you want. Add some cushions, find a good book or magazine and your daybed is ready to go.

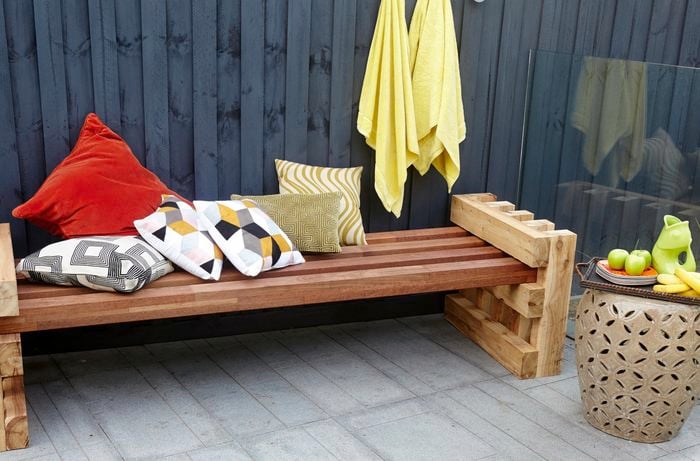

A completed outdoor day bed against a backyard fence with six throw cushions and a fruit tray nearby
