D.I.Y. hammock stand

Outdoor decking area with blue hammock on it.

Overview

When work is done, there's nothing better than soaking up some sun or reading a good book while kicking back in a hammock. It's easy to make a hammock stand yourself, we can show you how.

Steps

1Cut the timber

To make this D.I.Y. project even easier, you can have your timber pre-cut at your local Bunnings*.

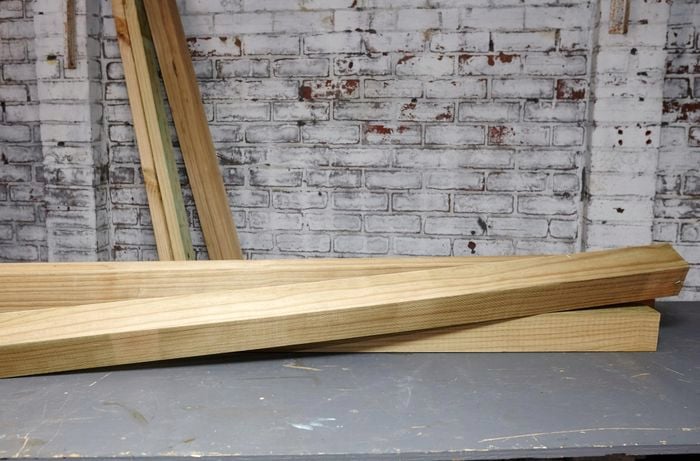

Cut the 90mm x 90mm treated pine into the following lengths:

  • 2400mm x 1 (for the spine)
  • 1500mm x 2 (for the uprights)
  • 1500mm x 2 (for the feet)

Cut the 90mm x 45mm treated pine into the following lengths:

  • 1150mm x 4 (for the supports)

*Not available at all Bunnings stores.

Pieces of long timber lying on the garage floor.

2Cut the mitre for the uprights

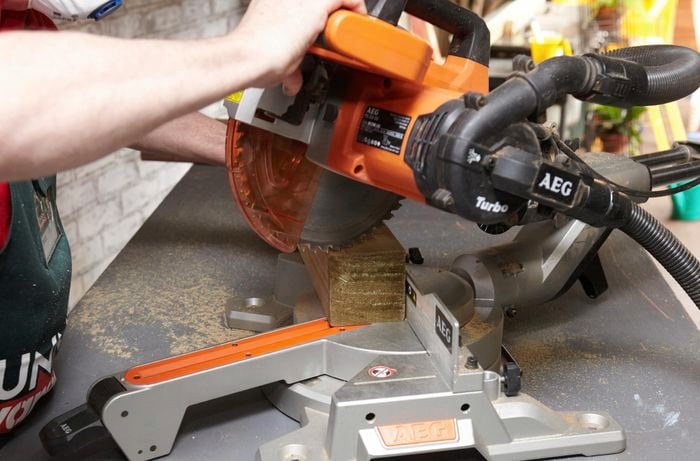

Set the mitre saw to 22.5 degrees. Then, use this to cut one end of each upright as close to the edge as possible.
Person using circular saw to cut piece of timber.

3Pre-drill the holes for the upright

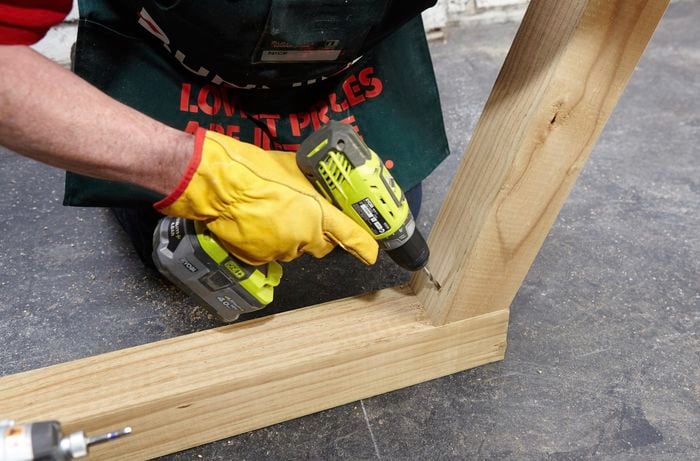

Because the upright timber is heavy, you'll need someone to help you with this step. Hold the timber upright so that it's flush with the base of the stand. Use the 6mm drill bit to pre-drill two holes through the upright and into the base.
Person drilling into timber.

4Attach the uprights

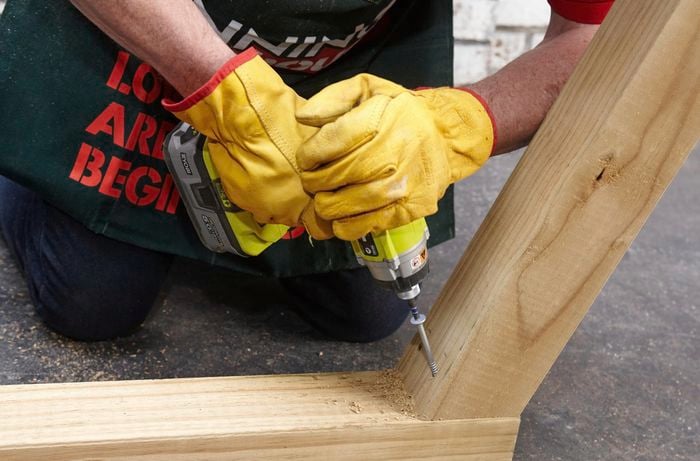

Use the drill and 100mm bugle screws to attach the uprights to the base. Repeat steps 3 and 4 to attach the other upright.
Person drilling screws into two bits of timber.

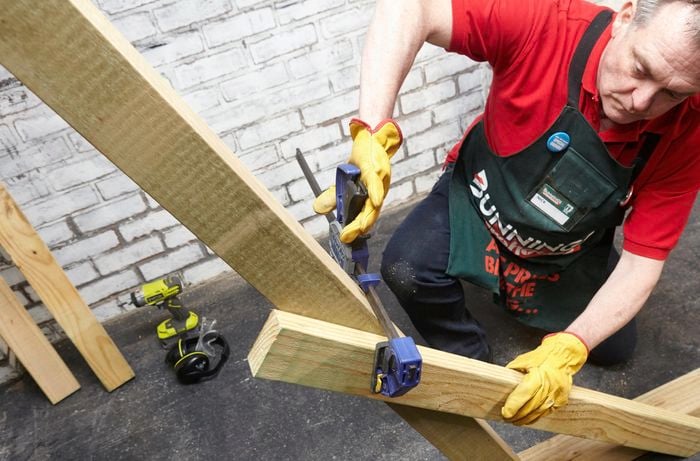

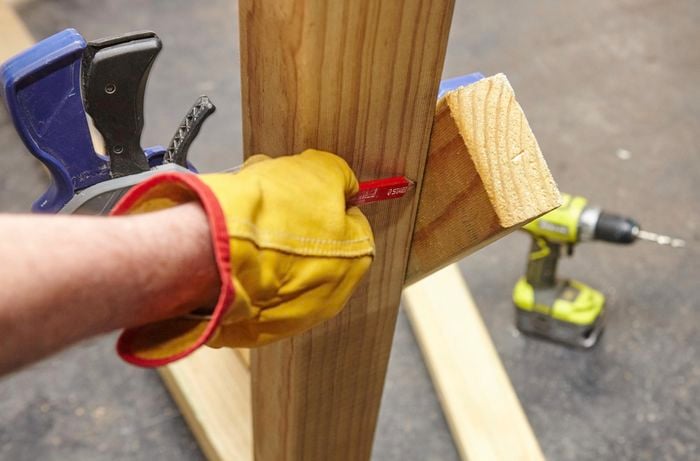

5Clamp and mark the support

Place the supports so that their 45-degree cut is flush with the floor. Clamp them in place. Use the pencil to mark the overhang of the timber.
Person marking against two pieces of timber that are attached.

6Cut the support

Set the saw to match the angle of the cut you need to make. Cut the timber to size. Then, repeat steps 5 and 6 to cut the other supports to size.
Person clamping two pieces of timber together.

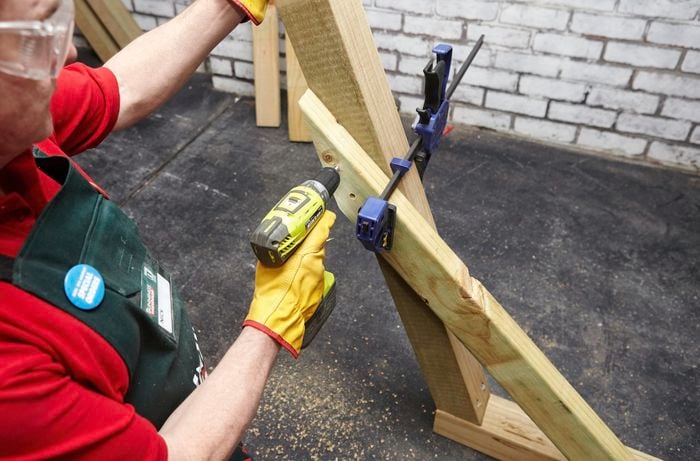

7Pre-drill the holes for the support

Clamp the supports back in place. Use the drill and 10mm drill bit to pre-drill two holes in both the top and bottom of the support and through the base.
Person drilling two pieces of timber together that are being held by clamp.

8Secure the support

Use the hammer to tap the 200mm dome head coach bolts through the base and supports. Place the nut on the end of the bolt and tighten with a spanner or socket wrench. Repeat this for all three holes in the support. And repeat steps 7 and 8 to attach the other support.
Person hammering very long screw into piece of timber.

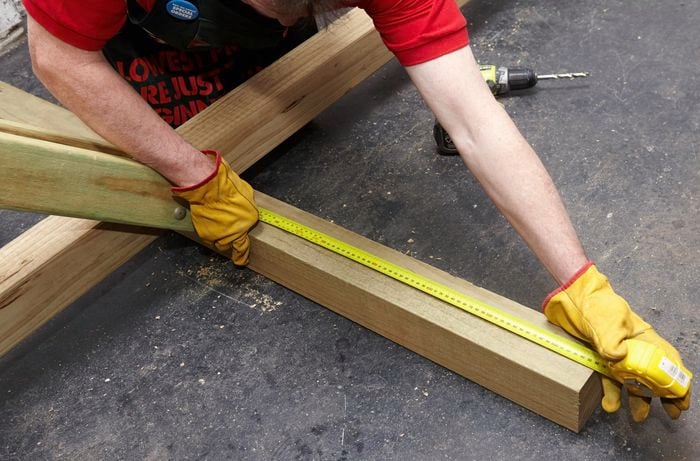

9Measure and mark the centre of the base struts

Place the base struts underneath the support frame. Use the tape measure to centre both struts.
Person measuring piece of timber with measuring tape.

10Pre-drill holes to attach the base struts

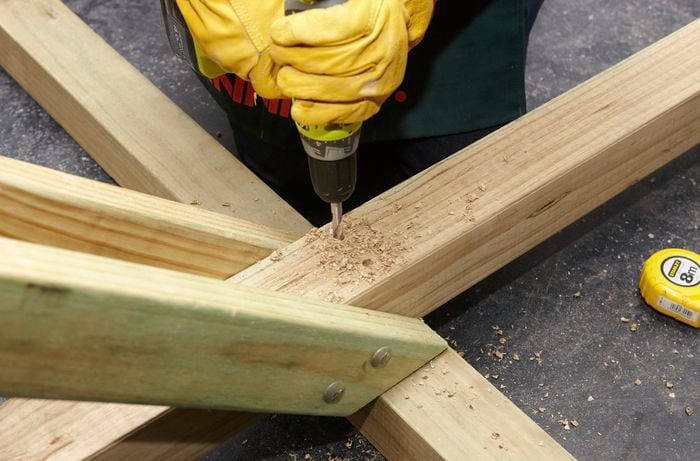

Use the drill and 10mm drill bit to pre-drill the holes to attach the base struts. Make sure you pre-drill through the 1500mm timber as well as the frame. To do this, remove the timber and pre-drill.
Person drilling holes into piece of timber.

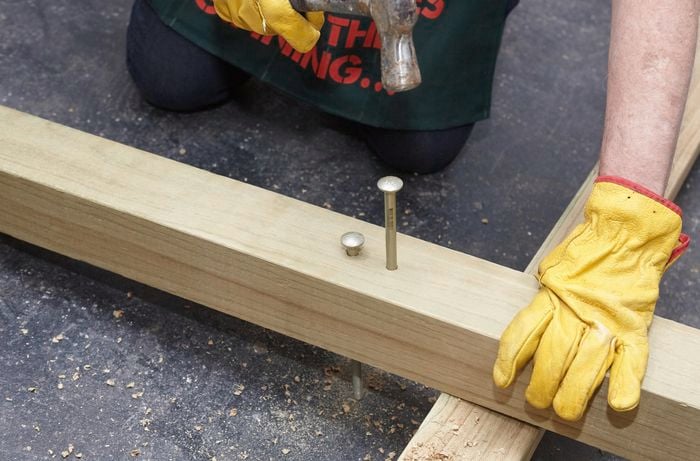

11Attach the base struts

Turn the base strut over and use the hammer to insert the bolts so they are flush to the surface. Lift your frame onto the bolts and use a mallet or hammer to position it snugly. Once the frame is on, secure it using washers and nuts. Tighten with a socket wrench. Repeat this to attach the other strut.
Person hammering very long screw into piece of timber.

12Cut the bolts

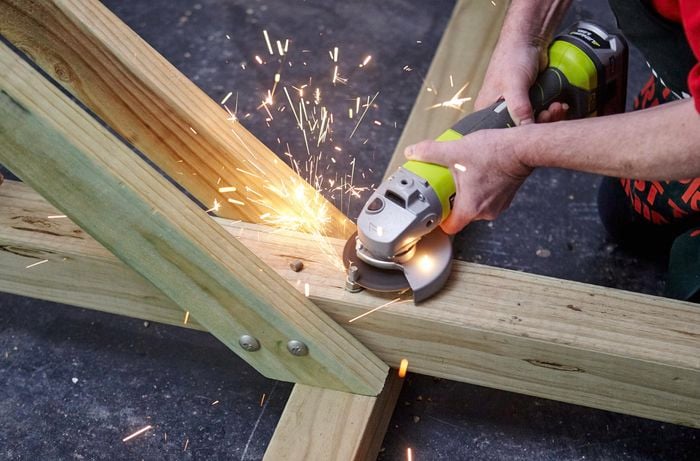

Use the angle grinder to cut the bolts, so they're flush with the nuts.
Person using handsaw to cut extra bit of screw off.

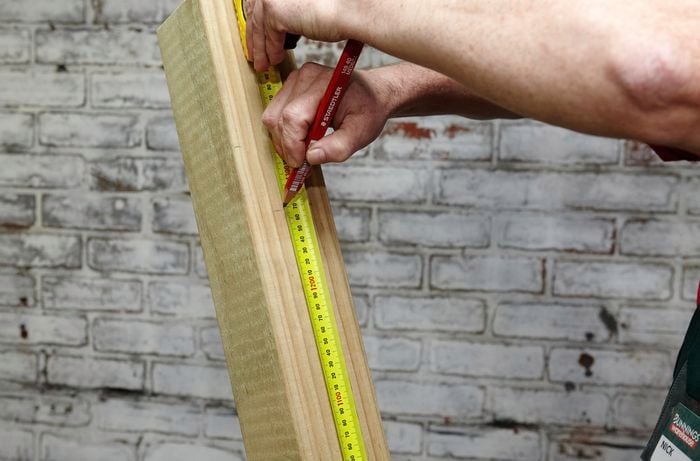

13Measure and mark for the hammock's fixings

Measure and mark on the uprights for the hooks to hold the hammock.
Person using measuring tape to make a mark on piece of timber.

14drill the holes for the fixings

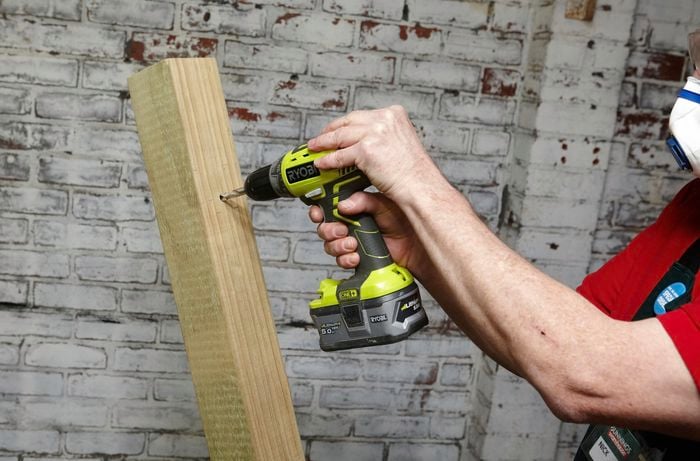

Use the drill and 10mm drill bit to drill the holes in the uprights for the hooks to attach the hammock to.
Person drilling into piece of timber.

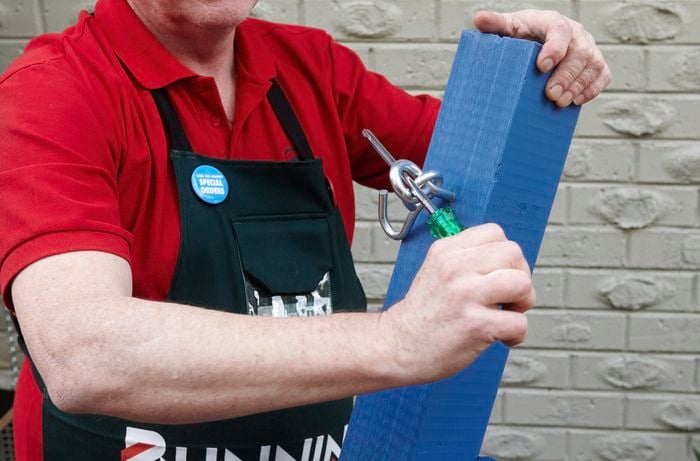

15Attach the fixings

Push the hook though the hole in the upright. Attach the nut to the end and tighten it. Repeat this to attach the other hook.
Person using screwdriver to push hook through a metal hole.

16Paint the hammock stand

You can leave the wood unpainted but we've decided to add a splash of colour to ours. You may need to apply 2 coats of paint. Let the paint dry.
Outdoor decking area with blue hammock frame on it.

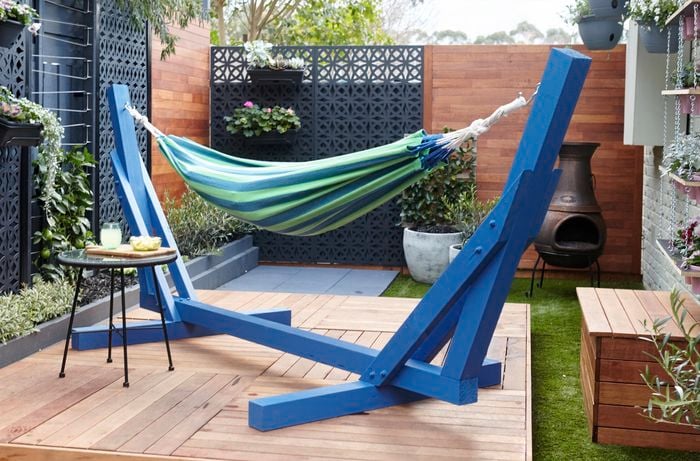

17Lie back and relax

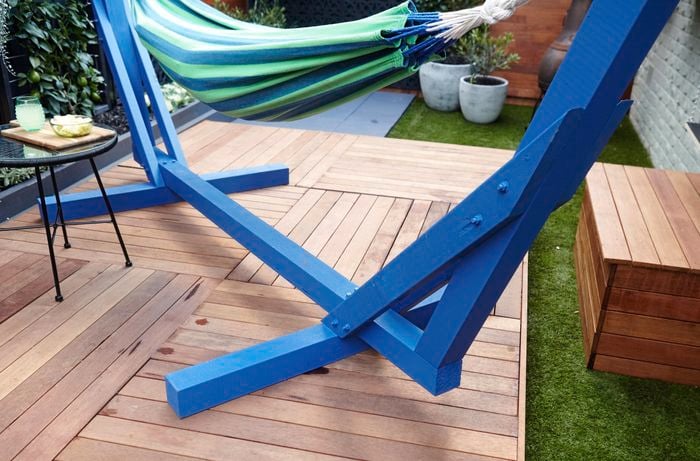

Now you can take it outside, lie back and enjoy all your hard work.
Outdoor decking area with blue and green hammock on it.
Health & Safety

Asbestos, lead-based paints and copper chromium arsenic (CCA) treated timber are health hazards you need to look out for when renovating older homes. These substances can easily be disturbed when renovating and exposure to them can cause a range of life-threatening diseases and conditions including cancer. For information on the dangers of asbestos, lead-based paint and CCA treated timber and tips for dealing with these materials contact your local council's Environmental Health Officer or visit our Health & Safety page.

When following our advice in our D.I.Y. videos, make sure you use all equipment, including PPE, safely by following the manufacturer’s instructions. Check that the equipment is suitable for the task and that PPE fits properly. If you are unsure, hire an expert to do the job or talk to a Bunnings Team Member.
