How to tile an outdoor splashback

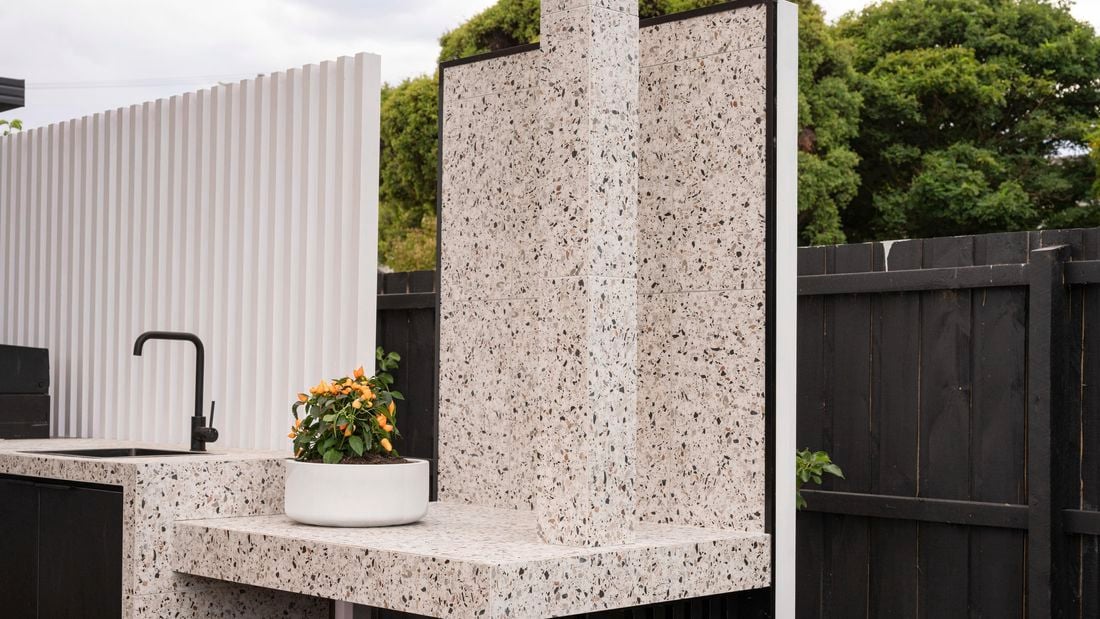

An image of an outdoor splashback.

Overview

Tiling your outdoor splashback makes cleaning a breeze and it also elevates the look and feel of your entire outdoor entertaining space. There are a wide variety of options to choose from, allowing you to showcase your personal style or to pair it with your indoor décor.

Follow this D.I.Y., step-by-step guide to tile an outdoor splashback in your alfresco kitchen.

Safety tip: Always wear the appropriate safety equipment (safety glasses, gloves, ear muffs and a mask, for example) and always follow the instructions for the product or equipment.

Steps

  1. 1

    Choose a fire-resistant base

    While planning your outdoor kitchen, consider the base you will be tiling over. Ensure it is made from a fire-resistant material, such as concrete, gypsum or stucco.

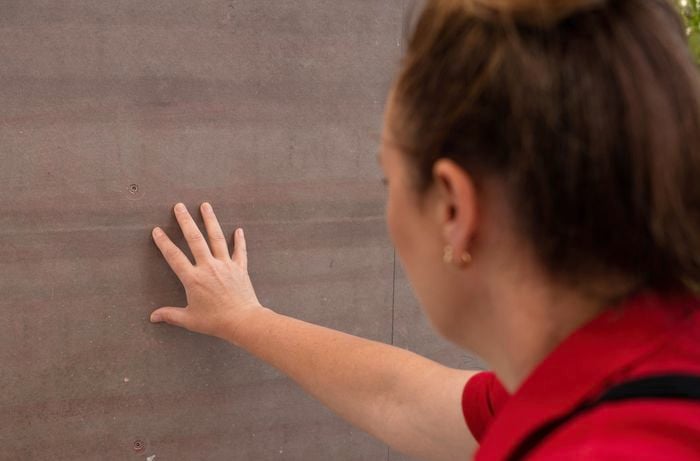

    A woman touching the wall.
  2. 2

    Apply a primer

    Begin by applying a primer to your base surface using a brush. Priming will ensure the tile adhesive will bond securely to your base. Allow to dry.

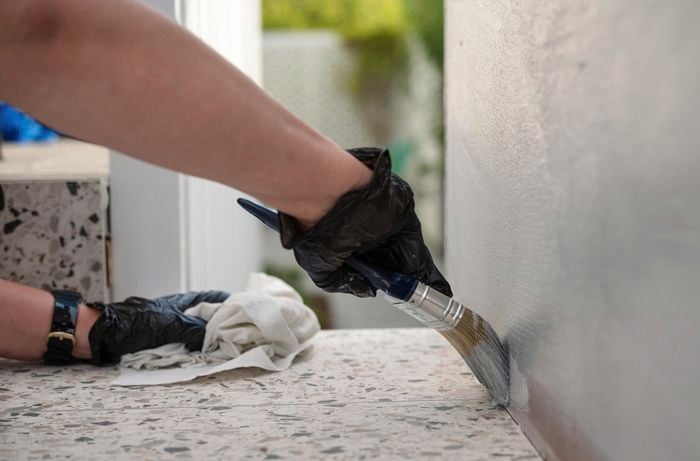

    A person painting the wall using a paint brush.
  3. 3

    Work out the tile design

    Work out your tile design on a flat surface. Play with patterns and features. This will give you a blueprint for what materials you’ll need and whether you’ll need to cut any tiles to size.

    A person lifting an outdoor tile.
  4. 4

    Determining the number of tiles

    To determine the number of tiles you’ll need, start by measuring the length and width of your splashback (length x width = square meterage of the splashback) and a single tile (length x width = square meterage of a tile).

    Divide the area you’re tiling by the square meterage of the single tile. This will give you the number of tiles you’ll need.

    Green Bunnings hammer
    Tip: Breakages and accidents happen, so we recommend purchasing 10 percent more tiles than you think you’ll need to account for this.

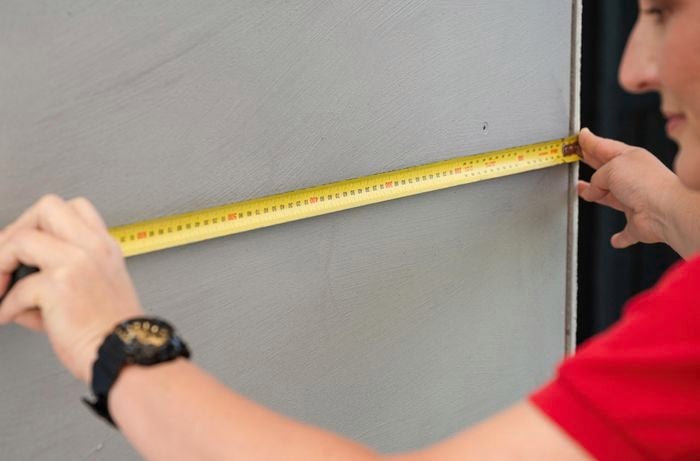

    A bunnings team member with a tape measure.
  5. 5

    Cut the tiles to size

    To cut the tiles to size, use a level and a pencil to mark out a guideline for where you need to cut on each tile. Using a tile cutter, carefully create a score on the line you’ve marked, before pushing down a little harder to make a clean cut.

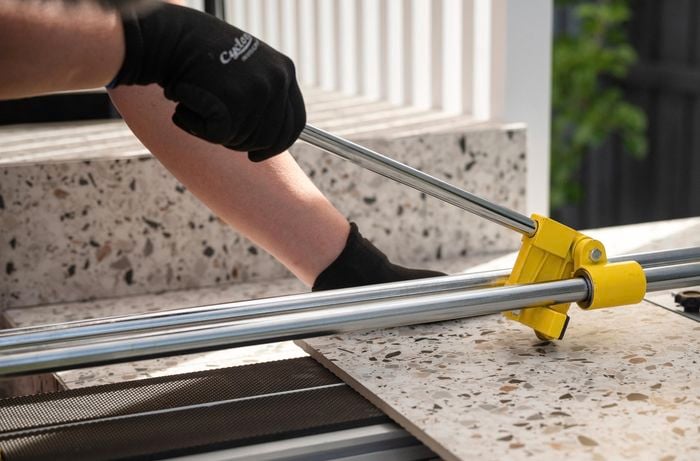

    Cutting the tile to the size.
  6. 6

    Lay the tile adhesive and tiles

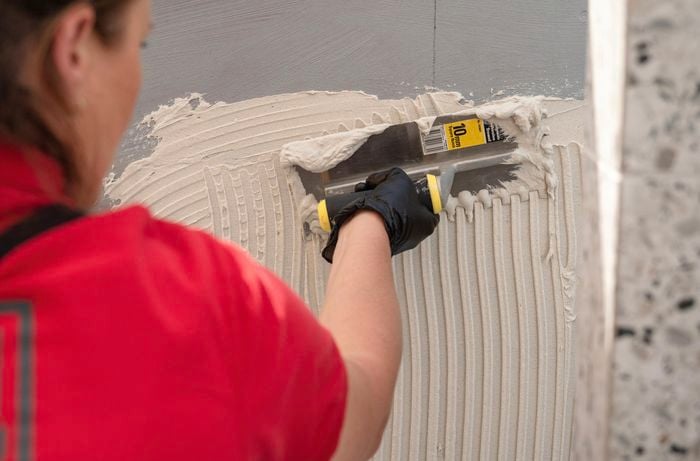

    Apply the tile adhesive approximately 1-3mm thick using a notch trowel. Work in small areas, starting from the bottom of your splashback area. For even spacing and a clean finish, insert a cross spacer between each tile. Allow it to dry for a minimum of 24 hours. Once dried, remove all cross spacers.

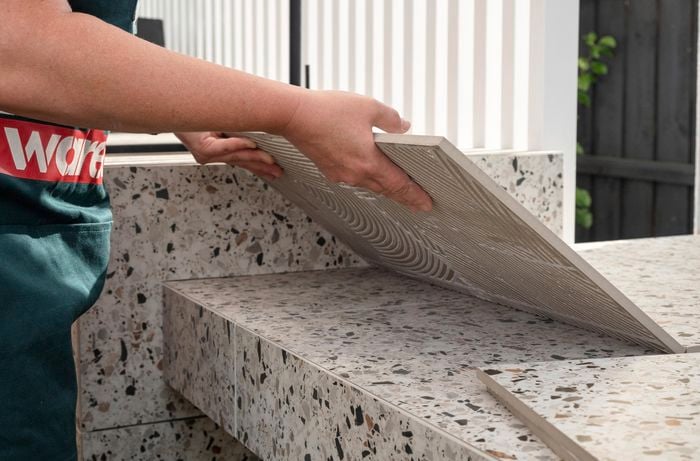

    Applying tile adhesive to the wall.
  7. 7

    Grout the tiles

    Prepare the grout in a plastic bucket, following the instructions on the packaging. To apply the grout, use a grout float and push the product in at an angle to ensure there aren't any air bubbles. Use a sponge to clean off any excess grout and allow the grout to dry overnight.

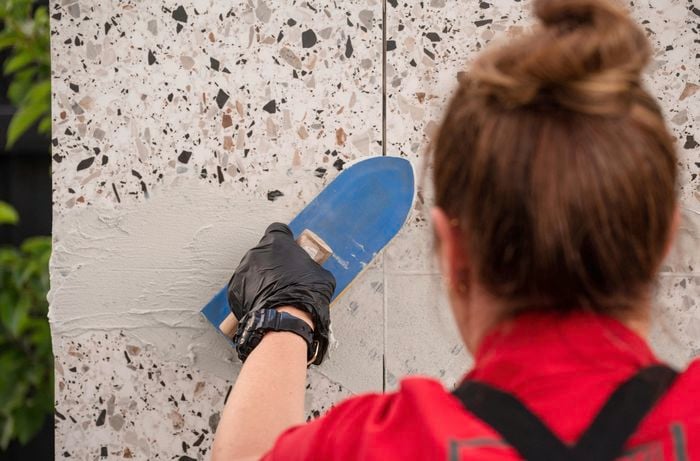

    Applying grout using a grout float.
  8. 8

    Add trimming

    Cut trimming to the length of your splashback. Apply glue to the edge of your splashback and add the trimming. Allow to dry.

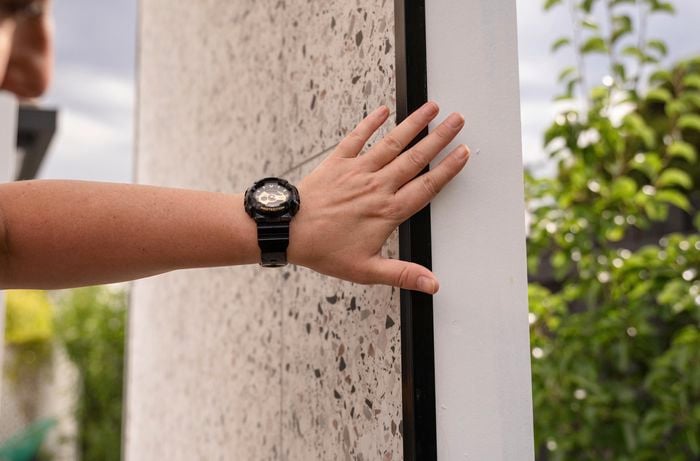

    A person touching the tile trim.
  9. 9
