Overview

Every kitchen could use some extra storage, whether it’s for cookbooks, flowers or even an indoor plant. Open shelving can be the perfect solution for filling a dead space in your kitchen with some additional storage space. And with the right equipment and materials, getting the job done couldn’t be easier.

Steps

1Measure and mark the lengths for the shelves

Measure the space for the open shelves and decide how many shelves you want to install. Here's the cut list for our shelves and quad supports:

Utility hardwood benchtop:
- 205mm x 775mm x 3

Quad moulding:
- 205mm x 4
- 775mm x 2

DIY Step Image - How to build open shelving . Blob storage upload.

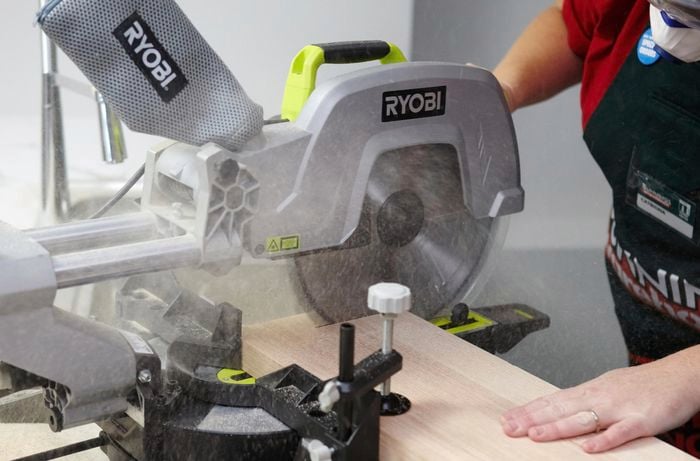

2Cut the shelves

Set up the drop saw and cut each shelf to 205mm x 775mm, we cut three in total.
DIY Step Image - How to build open shelving . Blob storage upload.

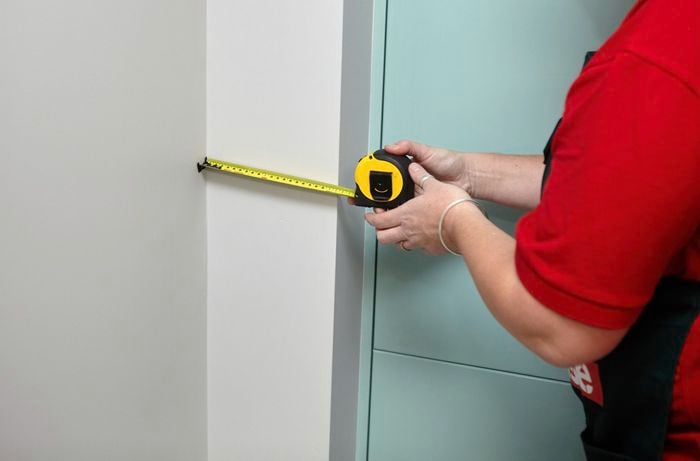

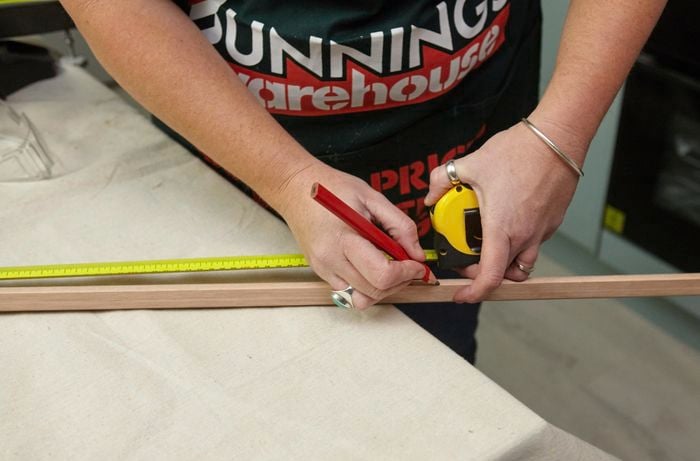

3Measure and mark for the quads

Measure the depth of the recess for the shelves. Transfer this measurement onto the quads. Our shelves were 205mm deep.
DIY Step Image - How to build open shelving . Blob storage upload.

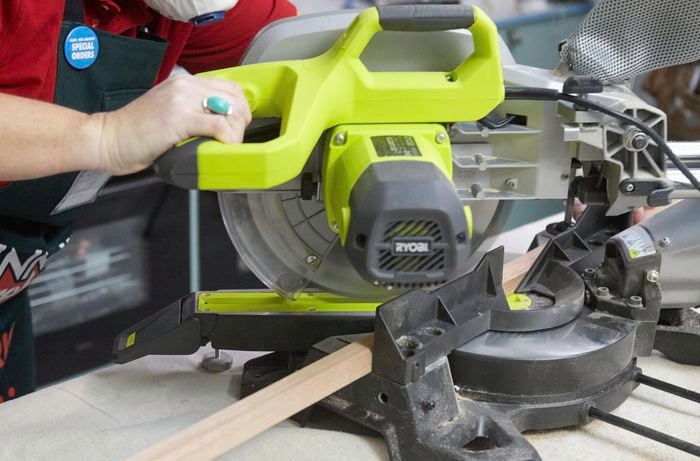

4Cut the quads

We need to cut four quads to support the sides of the shelves. Set the mitre saw to 45 degrees as all of the joins need to be on a 45-degree angle. Cut the quads to size. Set the mitre saw to 90 degrees to cut the non-joining ends of the quads. This will make sure they sit flush with the recess.
DIY Step Image - How to build open shelving . Blob storage upload.

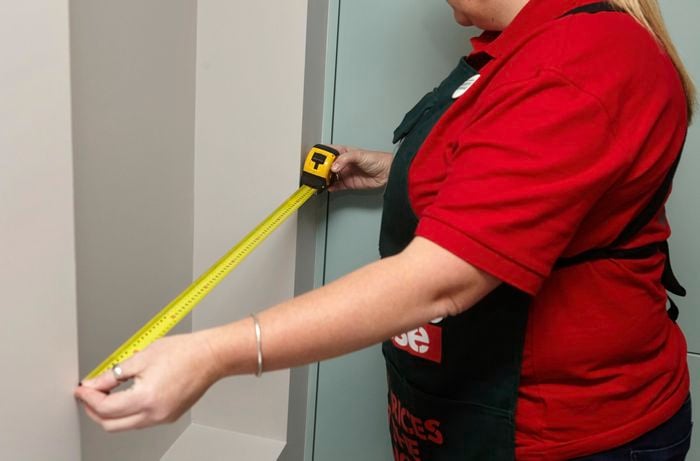

5Measure and mark for the back supports

Measure and mark for the quads that will be attached to the back of the recess. Ours were 775mm. Transfer these measurements onto the quads.
DIY Step Image - How to build open shelving . Blob storage upload.

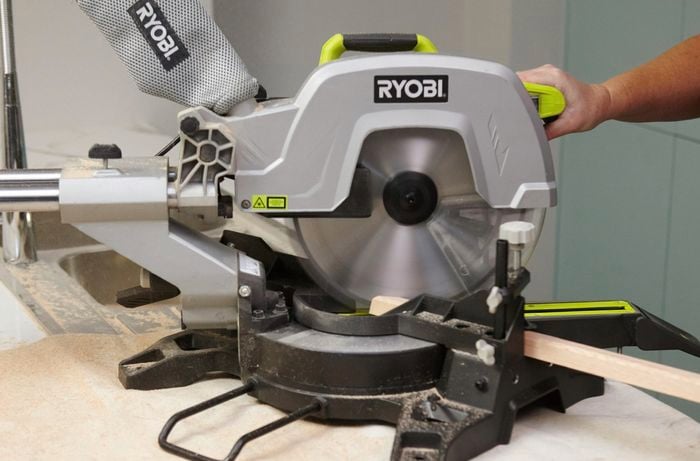

6Cut the quads

Set the mitre saw to a 45-degree angle. Cut the two pieces of quad to length.
DIY Step Image - How to build open shelving . Blob storage upload.

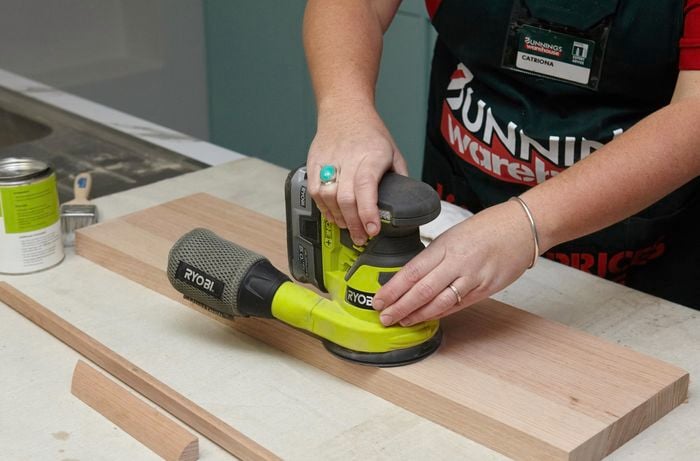

7Sand the timber

Use the orbital sander and 240 grit sandpaper to sand the shelves. Hand sand the quads and wipe away any dust.
DIY Step Image - How to build open shelving . Blob storage upload.

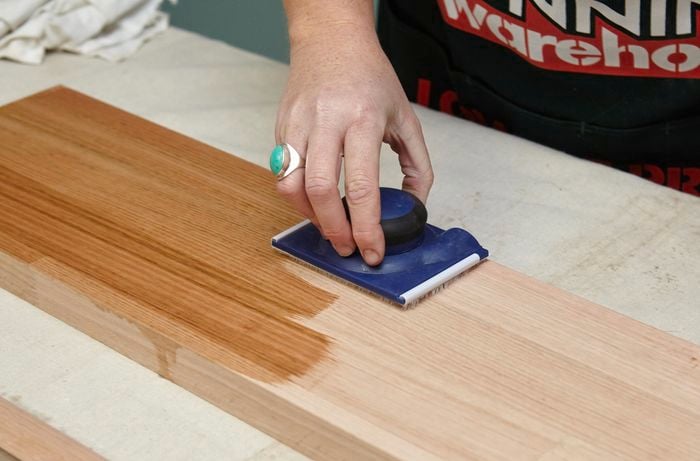

8Apply the hard wax oil

Using long, smooth strokes with the paint brush, apply the hard wax oil to the shelves and the quads. Then use the applicator that is included with the hard wax kit to smooth the hard wax oil onto the timber and create a nice, smooth finish. Make sure you also wax the outward facing surface of the shelf. Let the oil dry.
DIY Step Image - How to build open shelving . Blob storage upload.

9Install the first shelf

Place the first shelf on the bottom of the recess.
DIY Step Image - How to build open shelving . Blob storage upload.

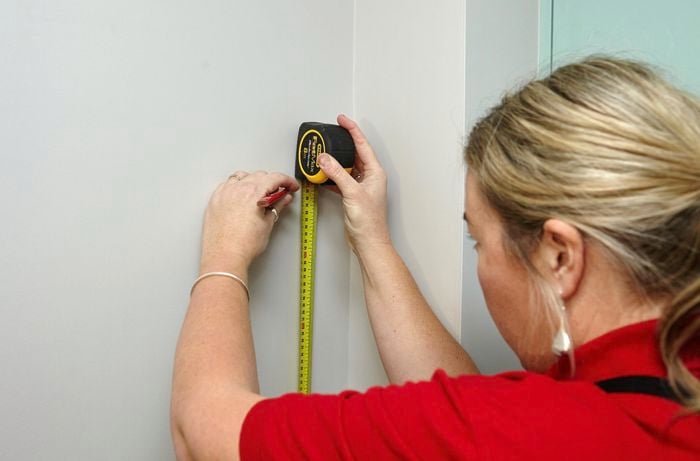

10Measure and mark for the other shelves

Once you've decided where you want to put your shelves measure and mark their position. Use a spirit level to draw a straight line across the back of the recess.
DIY Step Image - How to build open shelving . Blob storage upload.

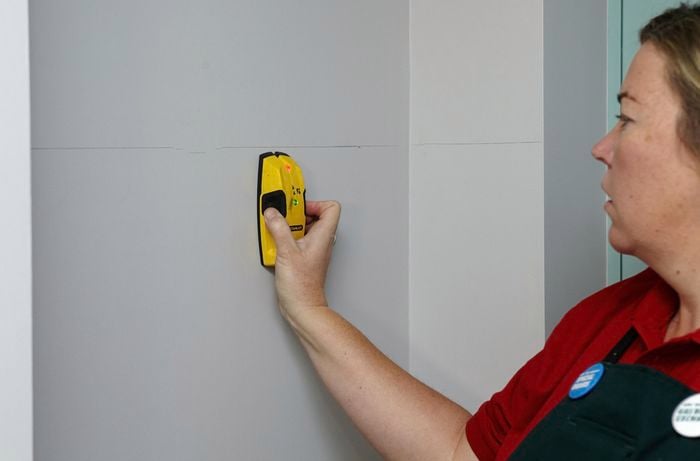

11Find the studs

Use the stud finder to mark where the studs are located behind the recess.
DIY Step Image - How to build open shelving . Blob storage upload.

12Nail gun the shelf supports to the recess

Use the nail gun to fix the quad mouldings into place.
DIY Step Image - How to build open shelving . Blob storage upload.

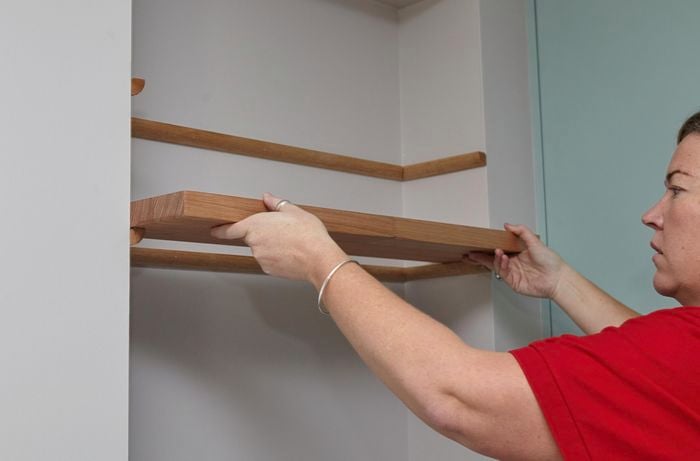

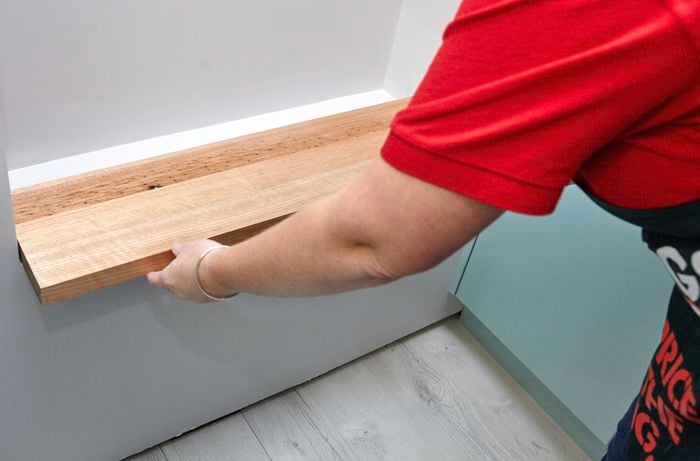

13Put the shelves in place

Slide your shelves into place on top of the quads.
DIY Step Image - How to build open shelving . Blob storage upload.

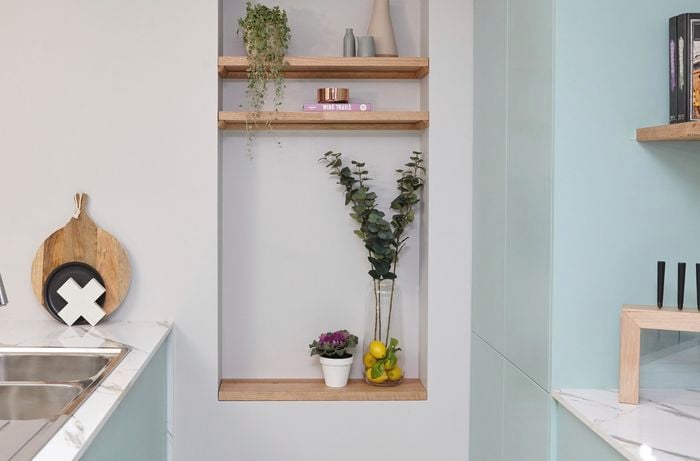

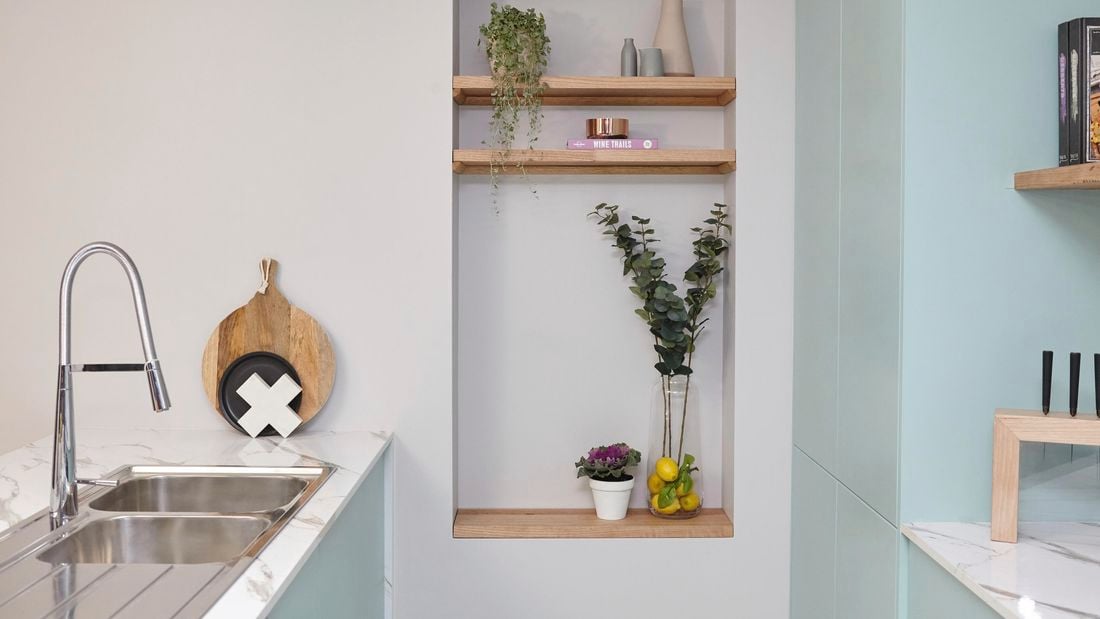

14A job well done

Now you get to admire your handiwork. What was an empty space is now a handy storage unit and a stylish addition to your kitchen.
