To make this D.I.Y. project easier, have your form ply pre-cut at your local Bunnings store. You can make your cabinet any size you like, for our cabinet we cut the form ply into the following lengths:
Use the 80 grit sandpaper to sand the edges of the form ply, revealing the wood grain and giving it a smooth finish.

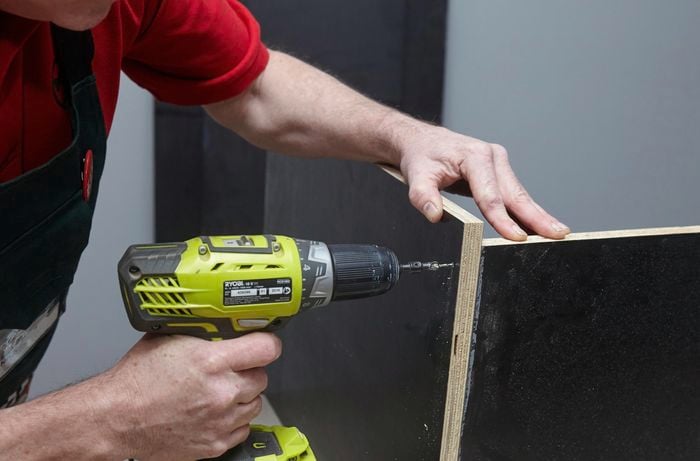

Start by fixing one of the sides and the bottom together. Pre-drill three holes using a countersink 2mm drill bit.
Apply a bead of glue to the edge of the form ply. Then use 30mm timber screws to join a side and the bottom together. Wipe off any excess glue. Repeat these steps with the other side and the top to make a four-sided frame.

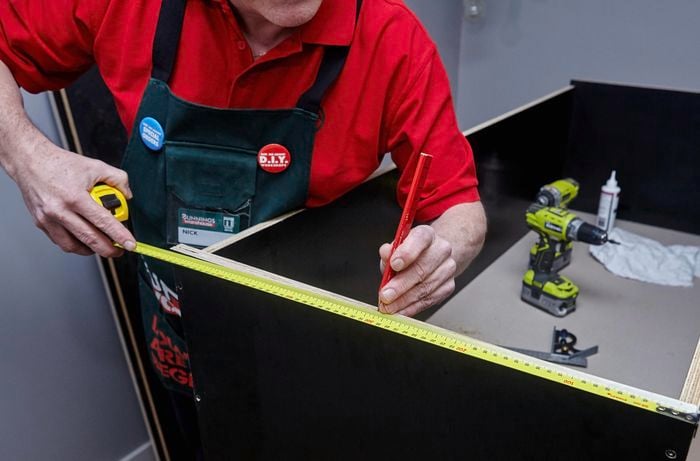

Measure and mark the centre point on the side of the outer frame. Mark on both the inside and outside of the outer frame, so you know where to pre-drill the holes. Use the carpenters square to draw a straight line between the marks. Repeat this on the other side of the shelf. When measuring and marking for the shelf, remember to allow 17mm for the width of the form ply shelf.

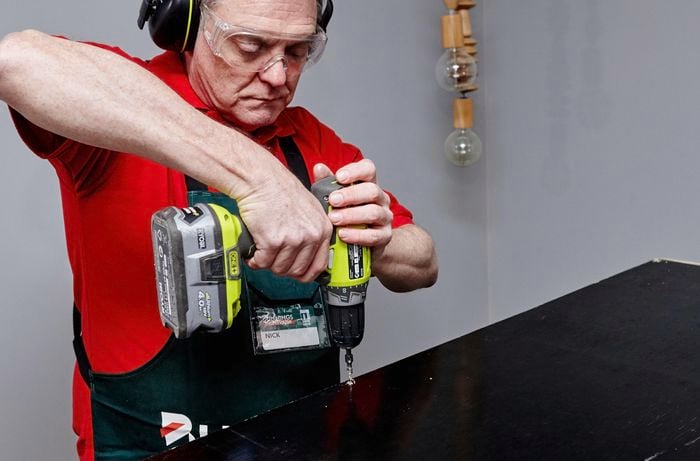

Pre-drill three holes in each side of the outer frame with the 2mm drill bit.

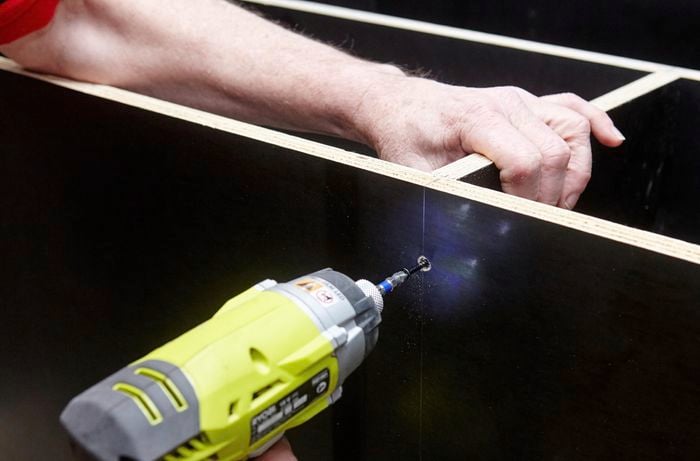

Use the drill and 30mm timber screws to fix the central horizontal shelf into place.

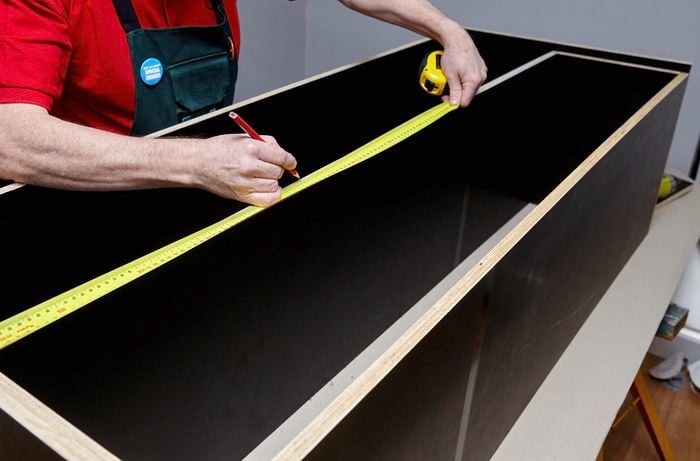

You can have as many dividers in your cabinet as you like. Our cabinet has two dividers along the bottom shelf and one in the top shelf. Our two dividers on the bottom shelf were measured and marked 500mm from each end. The divider in the top shelf was measured and marked 750mm from the end. Mark at the top and bottom of the outer frame and use the carpenters square to draw a straight line between them.

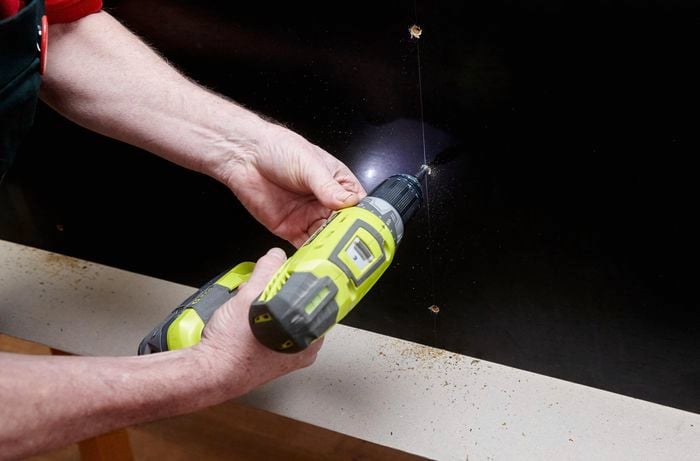

Pre-drill the holes for the dividers using a 2mm countersink drill bit. Drill three holes in each end of the dividers.
Use the drill and 30mm timber screws to fix the dividers into place.

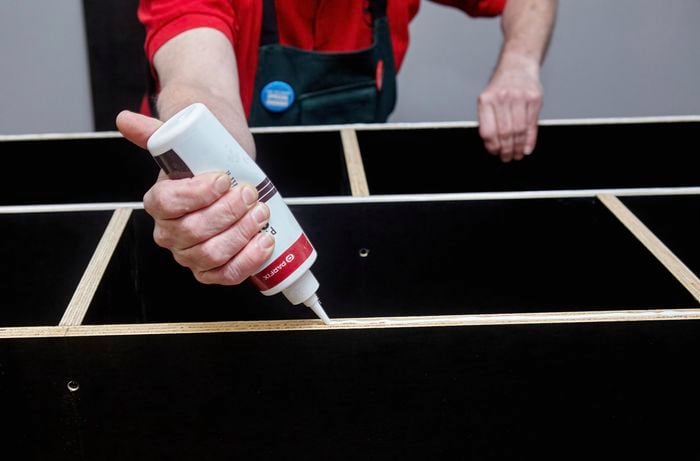

Apply a bead of PVA glue around the back of the outer frame of the cabinet. Place the back of the unit in place and pre-drill the holes for the screws that will secure it in place.
Use the cordless drill and 30mm timber screws to attach the back of the cabinet to the frame.
Turn the unit upside down. Place a caster in a corner of the storage unit. Use the drill and a 12mm screw to attach it to the unit. Repeat this for the three other casters.
We're going for an industrial look for our rolling storage cabinet, and have left the screws exposed, but you can use black wood filler to cover yours. We used 120 grit sandpaper to smooth any rough edges. We then applied some wax to the edges to bring out the grain of the timber and protect it. You'll need to apply at least two coats of wax, letting it fully absorb before applying the next coat.
