- Daisy-chain for clean setup

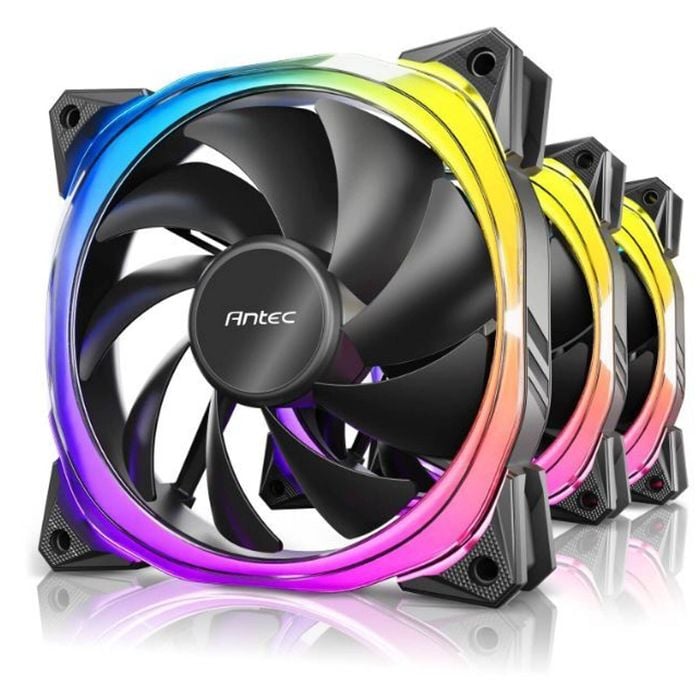

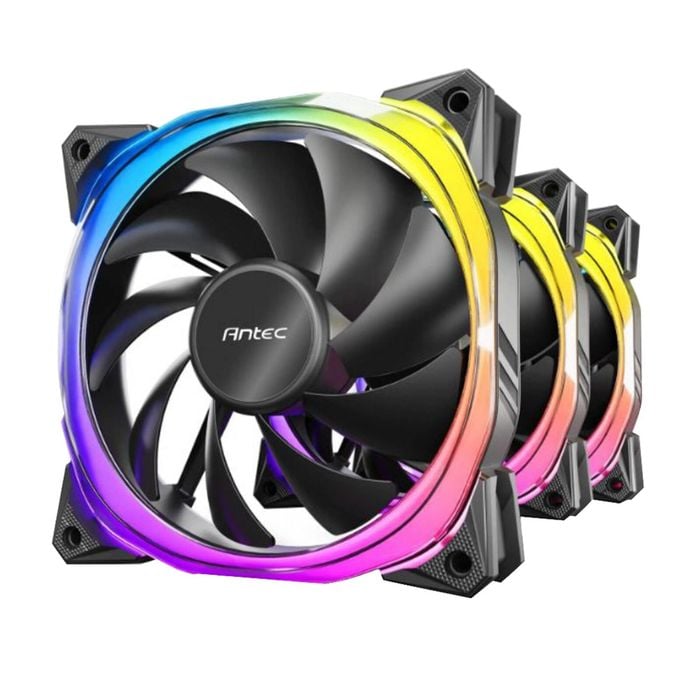

- 3-pack argb pwm fans with controller
- 57.93 cfm airflow
- The anti-noise design with 8 anti-vibration pads can efficiently reduce noise.
- Model name fusion 120 argb
description
unique multilateral shaped ighting frame projects. Various lighting effects

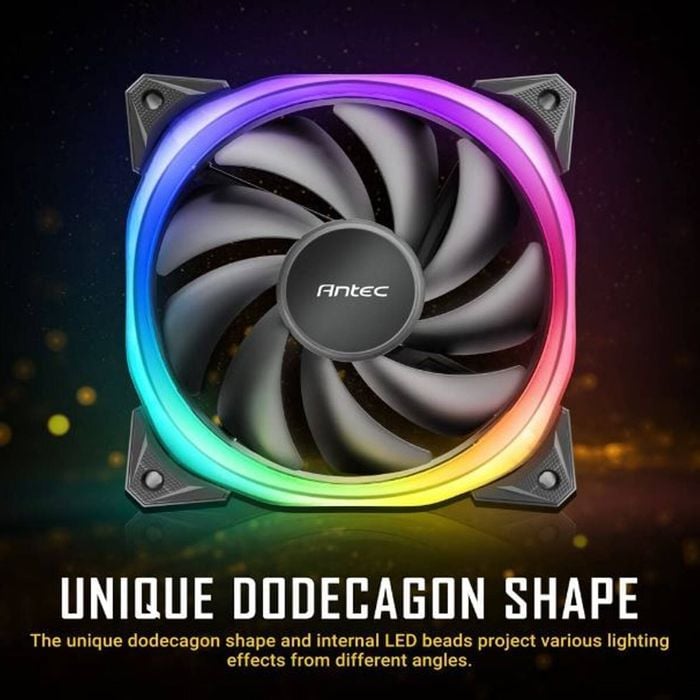

• the unique dodecagon-shaped lighting ring with 16 leds projects various lighting effects from many angles.
wonderful texture
• the well-processed fan structure and unique shape of fine craftsmanship bring the fan quality to the next level.
hydraulic bearing fan
• extends the lifespan and reduces the noise.
8 enlarged anti-vibration pads
• the anti-noise design with 8 anti-vibration pads can efficiently reduce noise.
specifications
• model name fusion 120 argb
• fan type pwm fan
• dimensions 120*120*25 mm
• bearing type hydraulic bearing
• led type addressable rgb
• fan speed 600±200~2000±10% rpm
• airflow 57.93 cfm (max.)
• air pressure 2.11 mmh₂o (max.)
• fan noise level 17.02~31.24 db(a)
• lifespan 40,000 hours /hrs 25°c
• connector fan: 4-pin pwm | led: 3-pin
• rated voltage fan: dc 12 v | led: dc 5 v
• operation voltage fan: dc 6.0-13.8 v | led: dc 4.5-5.5 v
• rated current fan : ≤ 0.21 a | led : ≤ 0.58 a
