- Universal size and fitment
- Compatible with standard sized rocker switch mounts, panels and housings
- Heavy duty, laser etched units
- 23 led options available
- Wiring instructions included
Please select LED Colour option from the top of the page
Blue, Green, Red and White LED Illumination Available

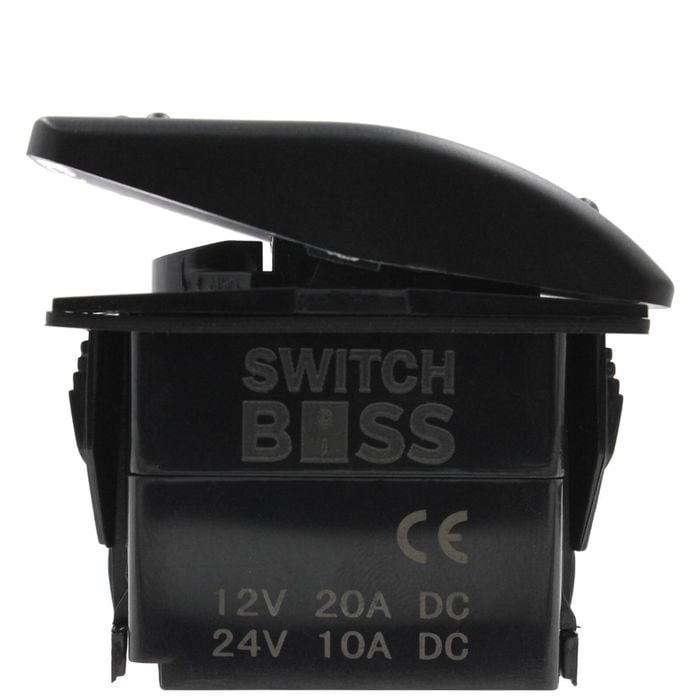

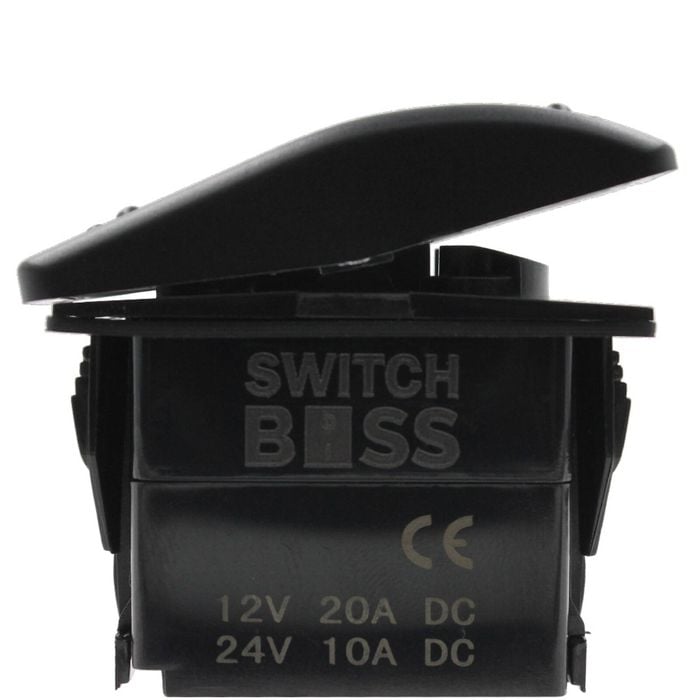

The Dual LED Rocker Switch by Switch Boss combines versatility with precision control. Featuring a On-Off function, this switch is equipped with dual LEDs and laser-etched symbols for clear indication. Constructed from durable ABS and high-quality electrical components, it operates at either 12v or 24v, with a maximum capacity of 20A and 10A respectively. It is ideal for applications requiring reliable performance in demanding environments.
Specifications:
LED illumination is visable through laser etched symbols/text
Lower LED/Text is illuminated for the "Dash Light"
Top LED/Symbol illuminates when switched "On"
Switch Up for On, Switch Down for Off
Size Of Cut Out Required for Switch: 21.5mm (W) x 37.5mm (H)
Switch Face Size: 24.5mm (W) x 49.5mm (H)
Depth (from back of mounting face): 38mm
Voltage: 12v-24v

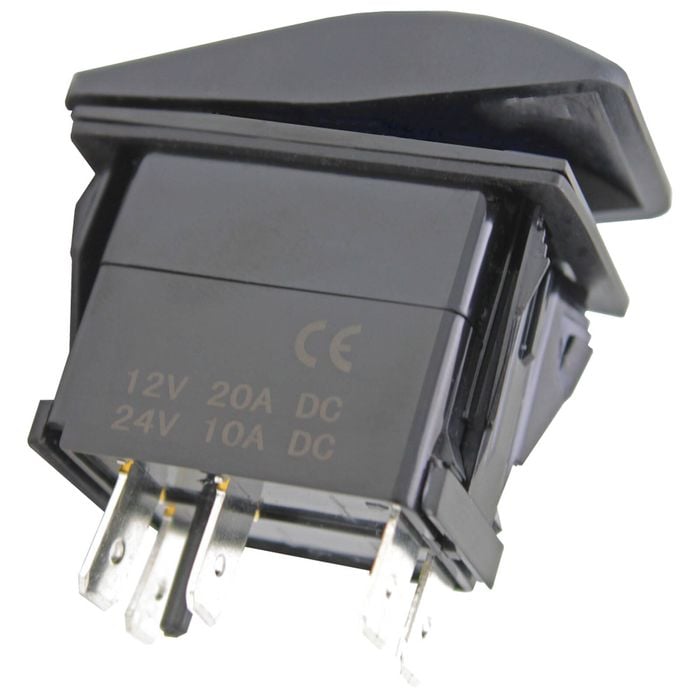

Maximum Rating: 10A @ 24V, 20A @ 12V
IP Rating: IP66
LED Colour: Select from top of page - Blue, Green, Red, White or available
Switch Materials: ABS + electrical components

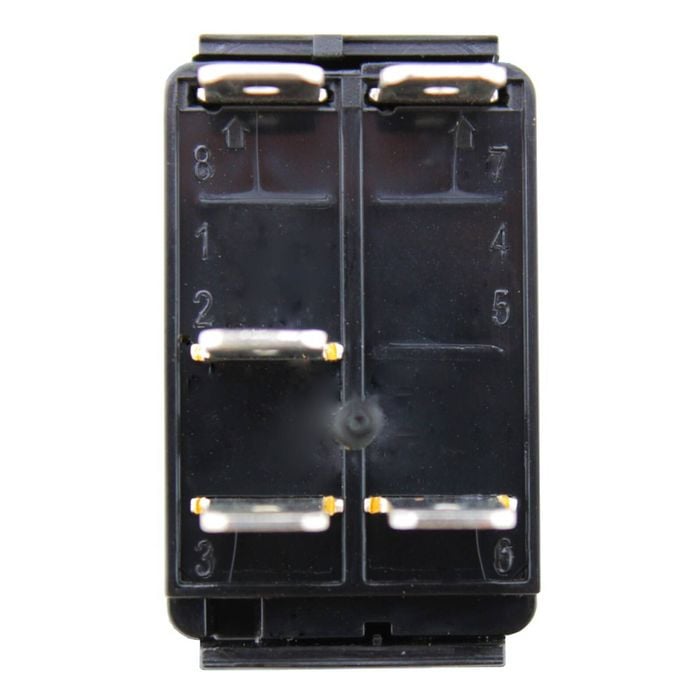

Switch Function: 5 Pin On-Off, SPST
What's in the box:

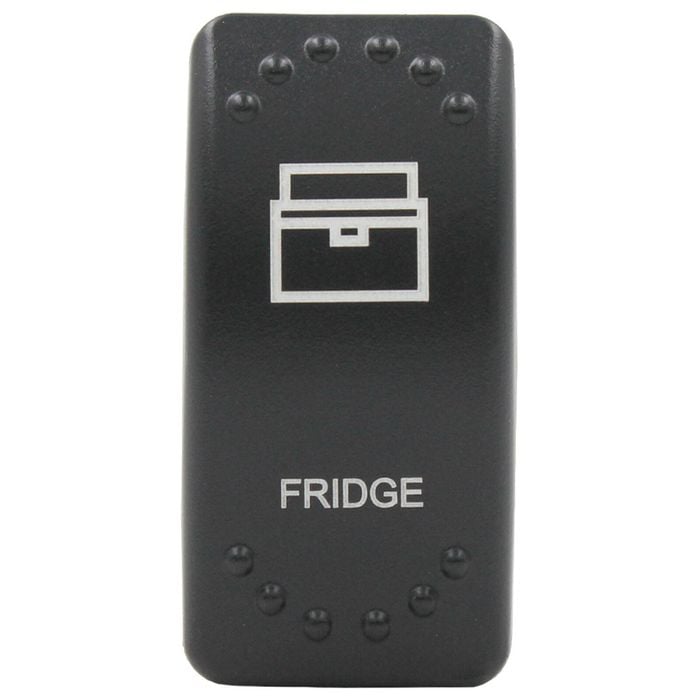

1 x Dual LED Laser Etched Rocker Switch - Fridge
1 x Wiring Instructions
