- High-performance power supply with 80+ platinum certification for efficient energy usage
- Features high-quality japanese capacitors for reliable operation and long lifespan
- Supports up to 1000w of power output with a compact 120mm fan design.
DESCRIPTION

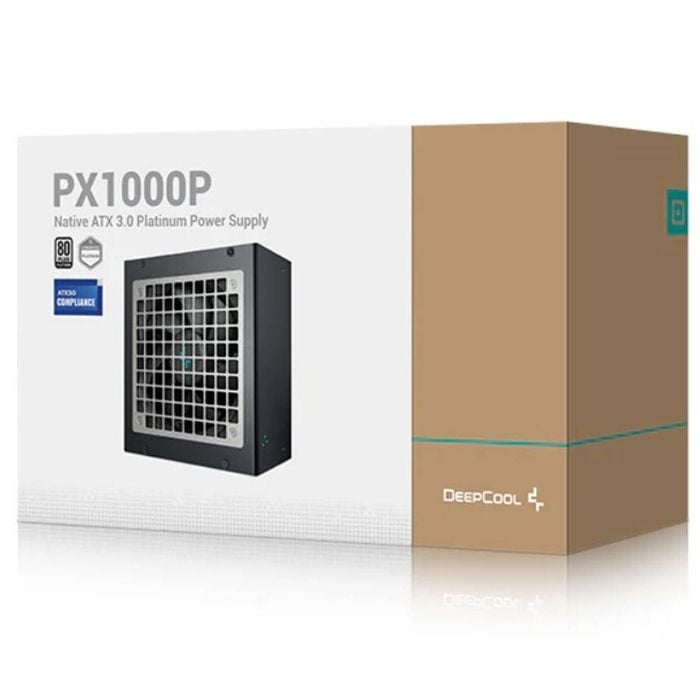

PX1000PThe DeepCool PX1000P is a newly designed power supply that meets the latest Intel ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 5 PCI-e ports, the PX1000P provides stable power for a wide range of modern high-power components.
Technical Spec
Type ATX12V V3.0
Product Dimensions 150×160×86mm (W x L x H)
Efficiency certification 80Plus Platinum/Cybenetics_Platinum
Fan Size 120mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Topology Interleaved PFC, Full-Bridge & LLC + DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms
Efficiency ≥92% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP/NLO/SIP
Operation Temperature 0 - 50℃
Regulatory CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/;
Erp Regulation ErP 2014
