- Ip65 waterproof design
- Provides 360 degrees of coverage
- One levels of unique led reflectors provide a full bodied beacon

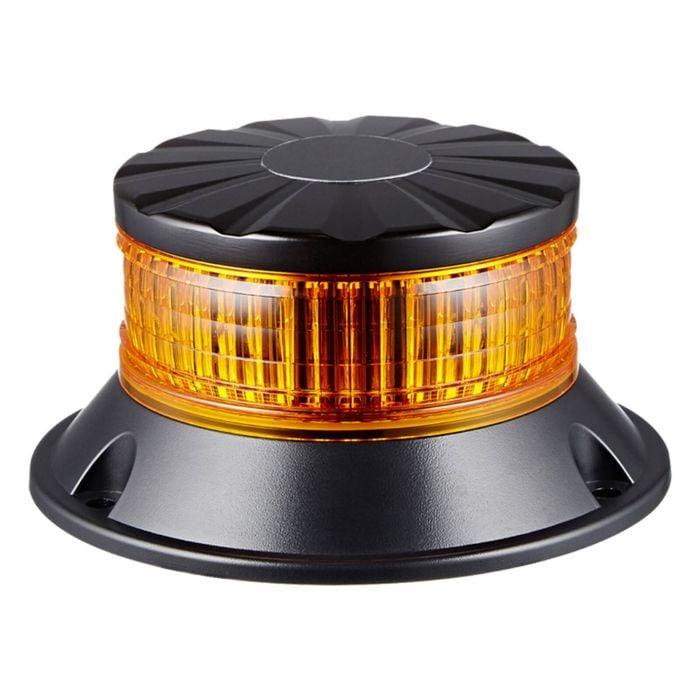

U4-12 12W LED Beacon
Model: U4-12
• IP65 Waterproof design
• Provides 360 degrees of Coverage
• One levels of unique LED reflectors provide a full bodied beacon
• 18 flash patterns modes including flashing and rotating function.
• Low amp draw and bright output provide the ideal beacon for everyday use
• Application: Car / Truck / Plant/ Machinery / Equipment / Forklift /Excavator
TECHNICAL SPECIFICATIONS
Light Characteristics
• LED Power: 12W (12PCS 1W LED)
• LED: Amber
• LENS: PC Amber
Electrical Characteristics
• Voltage: 10-30VDC
• MAX 1.3A @ 13.8VDC during flashing
• Blue wire to (-ve) momentun switch for pattern change
Physical Characteristics
• Waterproof: IP65
• Mounting: Aluminium Permanent three point base Gasket Supplied
• Flash patterns: 18
• ECE R65 / SAE CLASS 2
• Product Dimension: 148mm x 64mm
FLASH PATTERN
1. ECE Single Flash 120 FPM Ph1
2. ECE Single Flash 120 FPM Ph2
3. ECE Double Flash 120 FPM Ph1
4. ECE Double Flash 120 FPM Ph2
5. ECE Quad Flash 120 FPM Ph1
6. ECE Quad Flash 120 FPM Ph2
7. ECE Rotate Flash 120 FPM Ph1
8. ECE Rotate Flash 120 FPM Ph2
9. SAE Sigle Flash 75FPM Ph1
10. SAE Sigle Flash 75FPM Ph2
11. SAE Double Flash 75FPM Ph1
12. SAE Double Flash 75FPM Ph2
13. SAE Quad Flash 75FPM Ph1
14. SAE Quad Flash 75FPM Ph2
15. SAE Rotate Flash 75FPM Ph1
16. SAE Rotate Flash 75FPM Ph2
17. Steady On
18. Off
To select flash pattern, apply BLUE to BLACK (-ve) wire:
1. 1 second for next pattern
...
